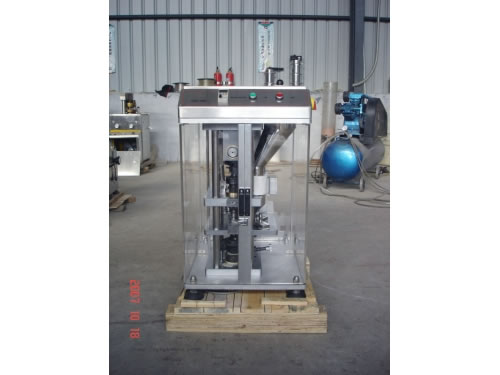

DP Single Tablet Press Machine
Introduction
DP single punch tablet press can press round or irregular tablets from various granular materials in a continuous way. It is an ideal machine used for small-scale production for research and development in lab, at hospital and plant. Absorbing the international advanced technologies, this desktop tablet press is applicable to pharmacy, chemical, food, and metallurgy industry. According to different maximum diameters, we mainly supply DP-25 and DP-12 single punch tablet press machines.
Advantages
1. This desktop tablet press enjoys the advantages of high precision of filling, low-consumption of material, large compression, low noise, small deviation of weight, etc.
2. DP single punch tablet press is of reasonable structure, easy operation and compact size.
3. The filling depth and thickness of tablet could be continuously adjusted.
4. The functionality of this desktop tablet press reaches the level of similar imported machines.
5. It is much safer and cleaner than other single press machines.
Parameters of DP Single Punch Tablet Press
| Model | DP-25 | DP-12 |
| Number of Die | 1 | 1 |
| Max. Diameter | 25 | 12 |
| Max. Capacity | 60 | 60 |
| Max. Pressure | 50 | 50 |
| Max. Depth of Filling | 20 | 20 |
| Tablet Thickness | 8 | 8 |
| Motor | 220V/50Hz, 1.5 kW | 220V/50Hz, 1.1kW |
| Overall Size | 580 × 500 × 830 | 550 × 450 × 750 |
| Net Weight | 150 | 120 |
Shanghai Chuanchu Industry Co., Ltd. is a specialized manufacturer and supplier of desktop tablet press in China. Our products mainly include single punch tablet press, powder mixer, granulator, pulverizer, sugar coating machine, capsule filling machine, packaging machine and other auxiliary machines. The normal delivery time for our products is from from 30 to 50 days. They are highly appraised by customers worldwide.
