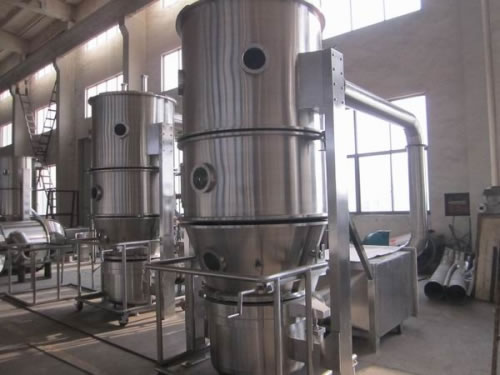

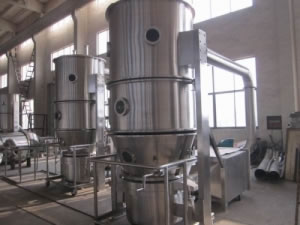

FG Fluid Bed Dryer
Description
FG fluid bed dryer can utilize nitrogen as the carrier, which can effectively prevent oxidation and keep the original fragrance and protein. By adopting special design, this vertical fluidizing dryer enables to recycle organic solvent.
Application
FG fluid bed dryer is designed and manufactured for drying powdery or granular materials in the pharmaceutical, health care products, food, chemical and other industries.
Features of Vertical Fluidizing Dryer
1. This equipment has an enclosed structure, so there is no cross pollution between the material and air.
2. Using anti-static filter materials, FG fluid bed dryer operates safely and stably.
3. This vertical fluidizing dryer is manufactured to meet GMP requirements.
4. The drying equipment has no blind angle and can be cleaned easily and thoroughly.
5. There is a filter bag built in the equipment.
Technical Parameters of FG Fluid Bed Dryer
Specification | 3 | 5 | 15 | 30 | 45 | 60 | 90 | ||||
Volume Container | 12 | 22 | 45 | 100 | 155 | 220 | 300 | ||||
Capacity | 1.5/4.5 | 4/6 | 10/20 | 15/45 | 25/65 | 40/80 | 60/120 | ||||
Fan Power | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | ||||
Steam Consumption | 12 | 23 | 42 | 70 | 99 | 141 | 169 | ||||
Compressed Air | 0.3 | 1.3 | 0.3 | 0.4 | 0.4 | 0.6 | 0.6 | ||||
Noise | ≤ 75 | ||||||||||
Reference Size for Installation | 1.0 × 0.55 × 1.8 | 1.2 × 0.6 × 2.1 |
1.25 × 0.9 × 2.1 | 1.6 × 0.9 × 2.3 | 1.65 × 1.1 × 2.4 | 1.85 × 1.25 × 3 | 1.85 × 1.25 × 3 |
Specification | 120 | 150 | 200 | 300 | 500 |
Volume Container | 420 | 530 | 660 | 1000 | 1500 |
Capacity | 80/160 | 90/200 | 100/300 | 150/450 | 300/300 |
Fan Power | 18.5 | 18.5 | 22 | 30 | 37 |
Steam Consumption | 211 | 251 | 282 | 366 | 451 |
Compressed Air | 0.9 | 0.9 | 0.9 | 1.3 | 1.5 |
Noise | ≤ 75 | ||||
Reference Size for Installation | 2.2 × 1.65 × 3.1 |
2.27 × 1.72 × 3.1 | 2.34 × 1.9 × 3.5 | 2.8 × 1.9 × 3.8 | 3 × 2.55 × 4.2 |
Shanghai Chuanchu Industry Co., Ltd. is a specialized vertical fluidizing dryer manufacturer in China. We have gained recognition from a large of clients due to our rich production, marketing and service experience. Besides, we keep researching new products to meet the needs of customers and markets. Located in Shanghai, the biggest port city of China, we provide convenient transportation, by land, air or sea. This can greatly reduce your transportation cost. If you need fluid bed dryer, please contact us freely.
