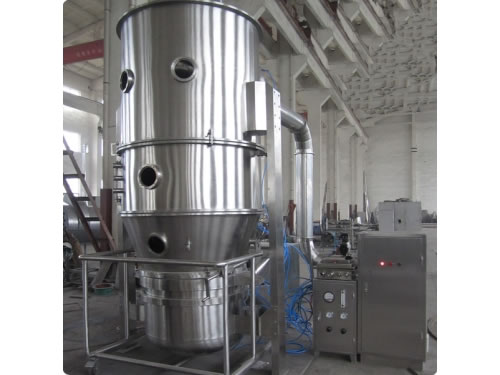

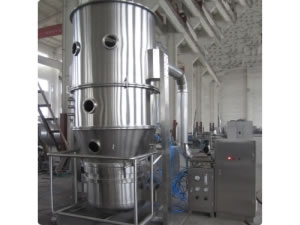

FL Series Fluid-Bed Granulator

Introduction
Fluid bed granulator is mainly used for mixing, granulating, drying and coating of tablets, granules and capsules in pharmaceutical industry. It can also produce cocoa, coffee, milk and juice granules and condiment in food industry. Additionally, fluidized drying granulator is suitable for palletizing in pesticides, fertilizer, pigment, dyestuff as well as coating granules in chemical industry. Our fluid bed granulators are manufactured in accordance with JB20014-2004 Fluid-bed Granulator in Medicine.

Features
1. Mixing, granulating and drying can be completed in the same fluidized drying granulator.
2. It adopts double chamber filtering bags system to remove dust completely.
3. Fluid bed granulator uses multi-fluid nozzle, which guarantees that the formed granule is uniform.
4. It adopts pressure relief holes to ensure the safety of facility and staff in case of explosion.
5. Our fluidized drying granulators are designed and manufactured conforming to GMP standard.
6. The antistatic filter cloth is used to ensure the security of equipment operation. It is also easy to wash.

Technical Parameters of Fluid Bed Granulator

Item				Specifications
Name			Unit	3	5	15	30	45	60	90	120
Container Volume			L	12	22	45	100	155	220	300	420
Capacity			kg/batch	3	5	15	30	45	60	90	120
Steam	Pressure	Mpa		0.4-0.6
	Consumption	kg/h		10	18	35	60	99	120	130	140
Power of Fan			kW	2.2	3	4	5.5	7.5	11	15	18.5
Power of Electricity Heater			kW	6	9
Noise			dB	The noise is not more than 75 dB. The fan and the main engine are separately installed.
Compressed Air	Pressure	Mpa		0.6
	Consumption	m3 /min		0.3	0.3	0.6	0.6	0.6	0.9	0.9	0.9
Installation Size for Reference			H 1 (mm)	2600	2600	2100	2250	2250	2850	2850	2850
			H 2 (mm)			250	320	420	490	540	590
			H 3 (mm)			1900	2050	2050	2600	2600	2600
			B 1 (mm)	1550	1650	1010	1160	1260	1460	1560	1660
			B 2 (mm)			1500	1800	2060	2460	2660	2860
			φ 1 (mm)	300	400	550	700	860	1000	1100	1200
			φ 2 (mm)	150	180	180	180	250	280	280	280
			L (mm)	850	1000	1100	1250	1530	1530	1530	1650

Item			Specifications
Name		Unit	150	200	300	500
Container Volume		L	550	670	1000	1500
Capacity		kg/batch	150	200	300	500
Steam	Pressure	Mpa	0.4-0.6
	Consumption	kg/h	161	180	310	400
Power of Fan		kW	22	22	30	45
Power of Electricity Heater		kW	STEAM
Noise		dB	The noise is not more than 75 dB. The fan and the main engine are separately installed.
Compressed Air	Pressure	Mpa	0.6
	Consumption	m3 /min	0.9	1.1	1.3	1.5
Installation Size for Reference		H 1 (mm)	2850	3300	3500	3850
		H 2 (mm)	640	690	790	890
		H 3 (mm)	2600	3180	3380	3680
		B 1 (mm)	1760	1860	2060	2260
		B 2 (mm)	3060	3260	3660	4060
		φ 1 (mm)	1300	1400	1600	1800
		φ 2 (mm)	280	280	315	355
		L (mm)	1650	1650	1750	1850

Note: All sizes are just used for reference. According to different materials, our company can customize products.

Shanghai Chuanchu Industry Co., Ltd. is a professional supplier and exporter of fluidized drying granulators in China. We are engaged in providing high quality fluid bed granulators to meet our customers’ requirements. The guarantee period is thirteen months from shipment date. During this period, we will provide free maintenance and free spare parts that caused by the machine’s quality, but buyers need to pay the express fee. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
