GD Isostatic Ball Press Machine
Introduction

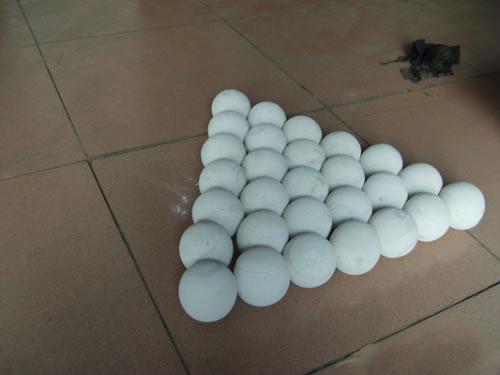

GD hydraulic ball press machine is especially applicable for isostatic forming of medium aluminum and high aluminum ceramic balls. This isostatic press machine is a frame type hydraulic press, with three main cylinders mounted inside the frame, two rapid cylinders on both sides of main cylinders respectively and one charging valve on the bottom of three main cylinders respectively. The hydraulic ball press machine is featured with high working efficiency, less power consumption, low noise, stable working, simple operation, safety and reliability, and so on.
Structure

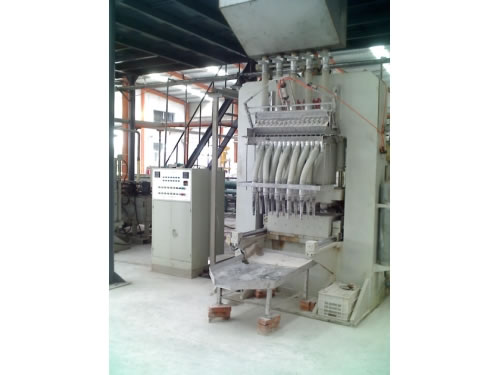

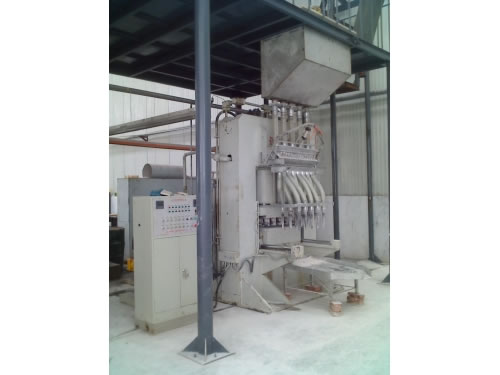

GD isostatic press machine is composed of mainframe, hydraulic system, electric system and connecting pipeline. The mainframe, hydraulic station and electric control cabinet are separated for transportation. The mainframe is composed of framework, mobile beam, main cylinder, rapid cylinder, charging valve, charging tank, distributor, mobile cylinder, isopiestic chamber, overturn cylinder, isopiestic chamber rise cylinder and other main components.
Parameters of GD Hydraulic Ball Press Machine
| Model | GD300 | GD600 | GD1200 |
| Isostatic Working Poressure | 45 Mpa | 45 Mpa | 45 Mpa |
| Ball Diamter | 30 mm or 40 mm | 50 mm or 60 mm | 60 mm |
| Working Station | 18 pc for balls with the diameter of 60 mm | 18 pc for balls with the diameter of 50 mm | 21 pc for balls with the diameter of 60 mm |
| Capacity | 3 T to 4 T/24 hours | 6 T to 10 T/24 hours | 12 T to 15 T/24 hours |
| System Working Pressure | 15 Mpa | 15 Mpa | 15 Mpa |
| Electric Control | SIEMENS PLC | SIEMENS PLC | SIEMENS PLC |
| Power | 25 kW | 34 kW | 42 kW |
| Working Time per Bacth | less than 40 seconds | less than 40 seconds | less than 40 seconds |
Shanghai Chuanchu Industry Co., Ltd. is a professional isostatic press machine manufacturer integrating development, production, marketing and service. Up to now, we have delivered outstanding, innovative and high quality hydraulic ball press machines to customers from more than 30 countries around the world. We also have our sale representative in Russian. They have good service team and provide technical support for customers.
