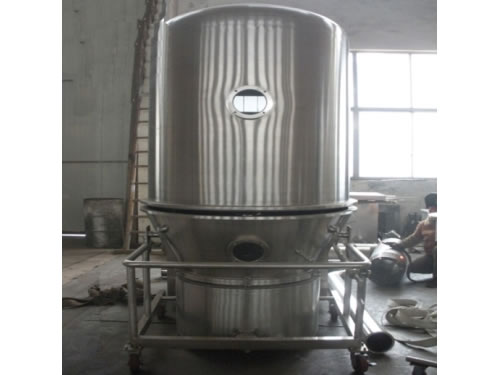

GFG High Efficiency Fluidizing Dryer

GFG High Efficiency Fluidizing Dryer

GFG high efficiency boiling dryer is suitable for drying damp granules and powder materials in pharmaceutical industry, chemical industry, feed stuff industry, light industry, etc. This boiling drying machine can be used for drying big granule, small block material, viscous block granular material, and so on.

1. GFG high efficiency boiling dryer is of circular structure so as to avoid blind angle.

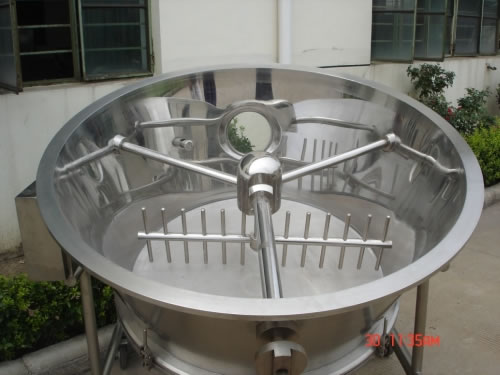

2. There is stirring device in the container, avoiding damp materials agglomerating during the drying course and further making the materials dry evenly and fast.
3. The cloth-bag filter at the top of boiling drying machine is made of special antistatic fibers to ensure safe operation.
4. High efficiency boiling dryer has high drying speed and uniform drying temperature. The drying time of each batch is generally from 20 to 30 minutes.
5. With such characteristics as closed operation under negative pressure, filtered airflow, easy operation and cleaning, the boiling drying machine is a kind of ideal equipment meeting GMP requirements.
6. Equipped with tipping discharge device, GFG high efficiency boiling dryer can discharge materials easily, quickly and thoroughly. We can also design automatic feeding and discharging system according to customer’s requirement.

Working Principle of GFG Boiling Drying Machine
After air is purified and heated, then it will be introduced from the bottom of induced-draft fan. Then it passes through the screen plate of raw material. In working chamber of high efficiency boiling dryer, the state of fluidization is formed under the action of stirring and negative pressure. The moisture is evaporated rapidly and taken away by air exhaust pipe, and the raw material is dried quickly.

Parameters of GFG Boiling Drying Machine

Specification Item 60 100 120 150 200 300 500 800-1000
Capacity kg/kg/batch 60 100 120 150 200 300 500 Decided by Client
Power of Fan kW 7.5 11 11 15 22 30 37
Power of Stirring kW 0.55 1.1 1.1 1.1 1.1 1.1 1.5
Rotating Speed of Stirring rpm       11
Steam Pressure Mpa       0.4-0.6
Consumption kg/h 141 170 210 240 282 366 451
Working Time min/batch       15-90

Shanghai Chuanchu Industry Co., Ltd. is a professional supplier and exporter of high efficiency boiling dryers. We are engaged in providing high-quality boiling drying machine to meet our customers’ requirements for pharmaceutical, food, cosmetic and chemical industries. The guarantee period is thirteen months from shipment date. During this period, we will provide free maintenance and free spare parts that caused by the machine’s quality, but buyers need to pay the express fee. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
