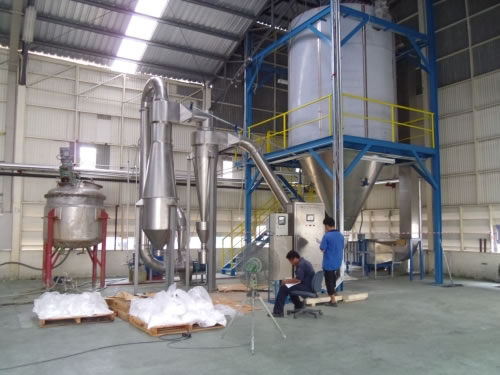

LPG High Speed Centrifugal Spray Dryer
Features
1. LPG high speed centrifugal spray dryer just takes 5 to 15 seconds to dry liquid materials.
2. This spray drying machine is quite suitable for thermo-sensitive materials.
3. Products processed by this equipment have good degree of uniformity, liquidity and dissolubility with high quality and purity.
4. In the hot-air flow, 95% to 98% of water can be evaporated at a moment.
5. LPG centrifugal spray dryer is simple and convenient to operate. It is well suited for continuous production.
6. This spray drying machine can adjust product diameter, density and water content by changing the operation condition in a certain scope.
7. The liquid with 40% to 60% of moisture content (For special materials, the content may reach 90%) can be dried into powder or particle products once a time.
8. After drying, there is no need for smashing and sorting. Thus, the operation procedures are reduced and the product purity is enhanced.
Working Steps of LPG Centrifugal Spray Dryer
1. After filtering and heating, hot air enters into the air distributor at the top of this spray drying machine.
2. By passing through the high-speed centrifugal atomizer at the top of the tower, the material will be rotated and sprayed into extremely fine fog drops.
3. Through short-time contacting with hot air, materials can be dried into the finished products.
4. Finished products will be discharged continuously from the bottom of the drying tower and from the cyclone separator. The waste gas will be discharged by blower.
Parameters of LPG High Speed Centrifugal Spray Dryer
Specification Item | 5 | 25 | 50 | 100 | 150 | 200-300 | ||
Temperature of Inlet Air | ≤ 350℃ | |||||||
Temperature of Outlet Air | ≤ 80℃ to 90℃ | |||||||
Evaporated Capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200-300 | ||
Transmitted | Compressed Air | (Machine Transmission) | ||||||
Rotating Speed (rpm) | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | ||
Diameter of Atomizing Disk (mm) | 50 | 120 | 120 | 120 | 150 | 180-340 | ||
Heat Source | Electricity | Electricity | Electricity, Steam, Oil Fuel, Gas | Electricity, Steam | Electricity, Steam, Oil Fuel, Gas | Decided by Customers | ||
Power of Electric Heater (kW) | 9 | 45 | 60 | 81 | 99 | |||
Yield of Dry Power (%) | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ≥ 95 | ||

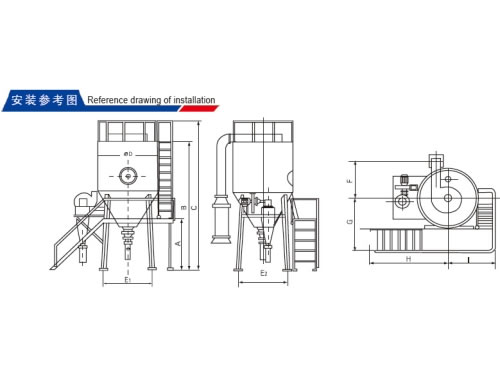

Installation Size for Reference | A (mm) | 1000 | 1290 | 1730 | 2500 | 2800 | Decided in Accordance with Actual Conditions | |
B (mm) | 2100 | 3410 | 4245 | 5300 | 6000 | |||
C (mm) | 2300 | 4260 | 4645 | 6000 | 6700 | |||
ØD (mm) | 1060 | 1800 | 2133 | 2560 | 2860 | |||
E1 (mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
E2 (mm) | 1050 | 1200 | 1640 | 2100 | 2180 | |||
F (mm) | 750 | 1000 | 1250 | 1750 | 1970 | |||
G (mm) | 530 | 1700 | 1750 | 1930 | 2080 | |||
H (mm) | 530 | 1300 | 1800 | 2600 | 3050 | |||
l (mm) | 530 | 1550 | 1600 | 1780 | 1960 |
Shanghai Chuanchu Industry Co., Ltd. is a specialized manufacturer and supplier of spray drying machines in China. We also supply tablet press machine, powder mixer, granulator, pulverizer, sugar coating machine, capsule filling machine, packaging machine and other auxiliary machines. The normal delivery time for our products is between 30 and 50 days. LPG high speed centrifugal spray dryer is highly appraised by customers worldwide.
