Hydraulic Press Machine

Hydraulic Press Machine

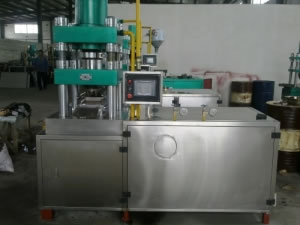

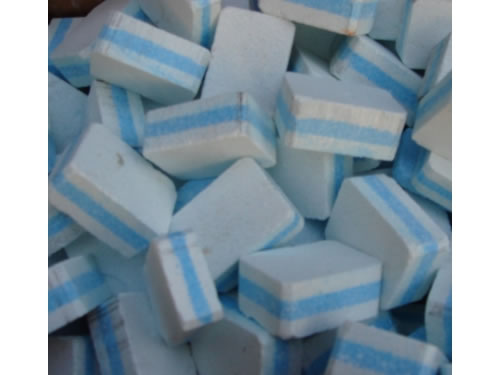

Hydraulic tablet press is mainly used to press powder or granular materials into tablets. This tablet compression machine can also be used to produce mothballs, disinfectants, metallurgical blocks, ceramics tablets, magnetic tablets, food products, bath salts, detergents, and so on. We mainly provide CHTP200T, CHTP150T, CHTP100T and CHTP45T hydraulic tablet presses.

1. This tablet compression machine can produce tablets from multi-cavity mould. It is of stable working pressure and can greatly increase productivity.
2. Electrical control system is under command of computer system. The process time can be adjusted according to the production situation, which can be achieved by automatic or manual work.
3. Hydraulic tablet press machine consists of two parts: host and control structure.

Working Principle
This tablet compression machine is of four-column structure. The upper one is plunger cylinder used for buffering effect. The lower one is also plunger cylinder and is set below. The lower cylinder works together with upper cylinder to finish the buffering effect. After that, the vice cylinder feeds the material.

Parameters of Hydraulic Tablet Press

Pressure 200 T 150 T 100 T 45 T
Upper Mould’s Fastest Route 220 mm 200 mm 200 mm 200 mm
Material Filling Height 250 mm 200 mm 200 mm 180 mm
Max. Diameter of the Lower Mould 600 mm 300 mm 300 mm 200 mm
Max. Diameter of Tablet 300 mm 200 mm 150 mm 100 mm
Capacity 3000 pc/hour 3000 pc/hour 3000 pc/hour 3000 pc/hour
Powder 15 kW 11 kW 11 kW 7.5 kW
Weight 2500 kg 2500 kg 2500 kg 2500 kg
Size 2100 × 1200 × 2630 2100 × 1200 × 2630 2100 × 1200 × 2630 2100 × 1200 × 2630

Shanghai Chuanchu Industry Co., Ltd. is specialized in manufacturing pharmaceutical tablet compression machines. Our products also include powder mixer, granulator, pulverizer, sugar coating machine, capsule filling machine, packaging machine and other auxiliary machines. Our hydraulic tablet presses are well received by customers worldwide.
