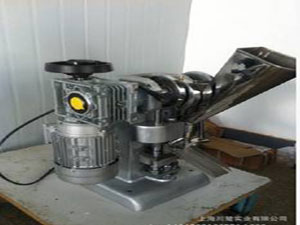

TDP0-2 Single punch tablet press machine
Description
This machine is used for pressing different kinds of granular raw materials into round tablets. It is applicable to trial manufacturing in lab or batch production in small amount different kinds of tablets, sugar pieces, calcium tablets and tablets of abnormal shape.
Features
1 it is single press machine
2 the tablet thickness, pressure and filling depth of material could be adjusted
3 the tablet press machine will work together with the punch and size. The punch and size will decide the tablet size and shape.
4 It is for hand-operated or electric-operated.
5 the speed of this machine could be adjustable
Parameters of TDP Single Punch Tablet Press Machine
| Model | TDP0-2 |
| Max. pressure (kN) | 15 |
| Max. dia. of tablet (mm) | 12 |
| Max. depth of fill (mm) | 1 |
| Thickness of largest tablet (mm) | 6 |
| Net weight (kg) | 40 |
| Production capacity (pcs/h) | 5,000 |
| Motor (W) | 370 |
