ZP-25B Rotary Tablet Press Machine

ZP-25B Rotary Tablet Press Machine

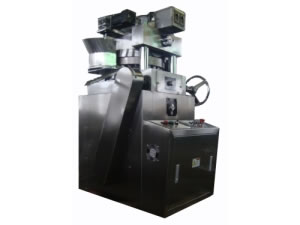

ZP-25B rotary tablet compression machine is a dual-pressure continuous and automatic rotary tablet press. It can press granular raw materials into tablets. This equipment is extensively used in the pharmaceutical industry, tablet production, chemical, food, electronics and other industries.

1. This rotary tablet compression machine is fabricated to meet GMP and made of stainless steel. The inner tablet press surface is already specially treated, which could keep surface luster and prevent from cross contamination.
2. ZP-25B rotary tablet press is equipped with plexiglass perspective window that can help to observe the status of pressing piece. Side glass could be fully opened, making it easy to clean and maintain.
3. Rotary tablet compression machine is equipped with touching key and screen.
4. All monitors and operating components are in good order.
5. Transmitting system of this rotary tablet press is sealed in the oil box under the main machine. There is no pollution and it is easy to send out heat.
6. Rotary tablet compression machine has powder-absorbing apparatus that could absorb powder in the piece-pressing room.

Parameters of ZP-25B Rotary Tablet Press

Dies (Set)        25
Max. Pressure (KN) 120
Max. Diameter of Tablet (mm) 29
Max. Filling Depth (mm) 30
Max. Thickness of Tablet (mm) 15
Diameter of Punch (mm) 29
Length of Upper Punch (mm) 125
Length of Lower Punch (mm) 156
Diameter of Middle Die (mm) 42
Height of Middle Die (mm) 30+5
Speed of Turret (run/minute) 5-25
Production Capacity (tablet/hour) 15000-75000
Motor (kW)  3 kW, 6grade
Overall Size (mm) 950 × 960 × 1600
Net Weight (kg)  1500

Shanghai Chuanchu Industry Co., Ltd. is a professional supplier and exporter of rotary tablet compression machines in China. We are engaged in providing high quality products to meet our customers’ requirements for pharmaceutical, food, cosmetic and chemical industries. The guarantee period is thirteen months from shipment date. During this period, we will provide free maintenance and free spare parts that caused by the rotary tablet press’s quality, but buyers need to pay the express fee. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
